Es

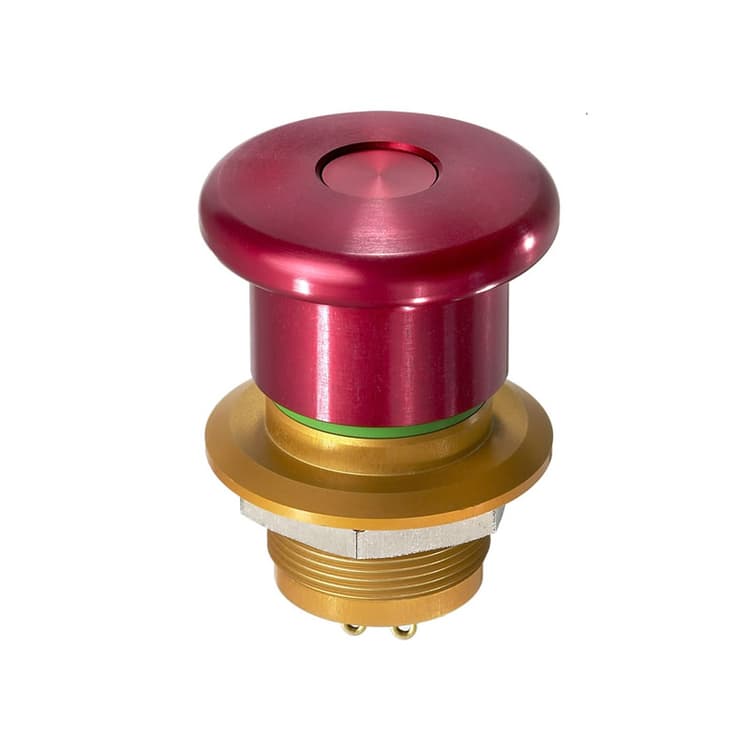

Heavy-duty safety switch with dia. 34 mm red anodized actuator, designed for heavy-duty applications. Features IK10 impact resistance, IP65, IP67 & IP69K frontal sealing and compliant withEN 60947-5-1 certification. Push-pull ON-ON function.

Main features

  • Metal product with dia. 22 mm bushing (market standard)
  • 100.000 cycle mechanical life
  • IK10 Impact resistance, no axis deformation even if exposed to major shocks
  • Sealed to IP65, IP67 & IP69K
  • Lower behind-panel depth
  • Locked/unlocked status indicator
  • Customizable actuator and bezel (color, shape, marking)
  • Straight PC or solder lug terminals
Product detail

Key Features

• Panel thickness : 6 mm (.236) max.
• Low level or mechanical life : 100,000 cycles
• Travel to lock : 2.20 mm ± 0.3 mm
• Total travel : 4.20 mm ± 0.3 mm
• Torque : 5 Nm min. - 14 Nm max. applied to nut
• Operating force :
2 pole models : Push : 30 N ± 7 N; pull : 25 N ± 5 N
3 pole models : Push : 45 N ± 7 N; pull : 25 N ± 5 N
26 筆 Products
Filters
  1. image placeholder
    Es
    ES3S51653001
  2. image placeholder
    Es
    ES3S51653
  3. image placeholder
    Es
    ES3S41653
  4. image placeholder
    Es
    ES3P51653001
  5. image placeholder
    Es
    ES3P51653
  6. image placeholder
    Es
    ES3P41653
  7. image placeholder
    Es
    ES3C51653001
  8. image placeholder
    Es
    ES3C51653
  9. image placeholder
    Es
    ES3C41653
  10. image placeholder
    Es
    ES2S51653
  11. image placeholder
    Es
    ES2S41653
  12. image placeholder
    Es
    ES2P51653

Showing 1~ 12 of 26 Products
