FD

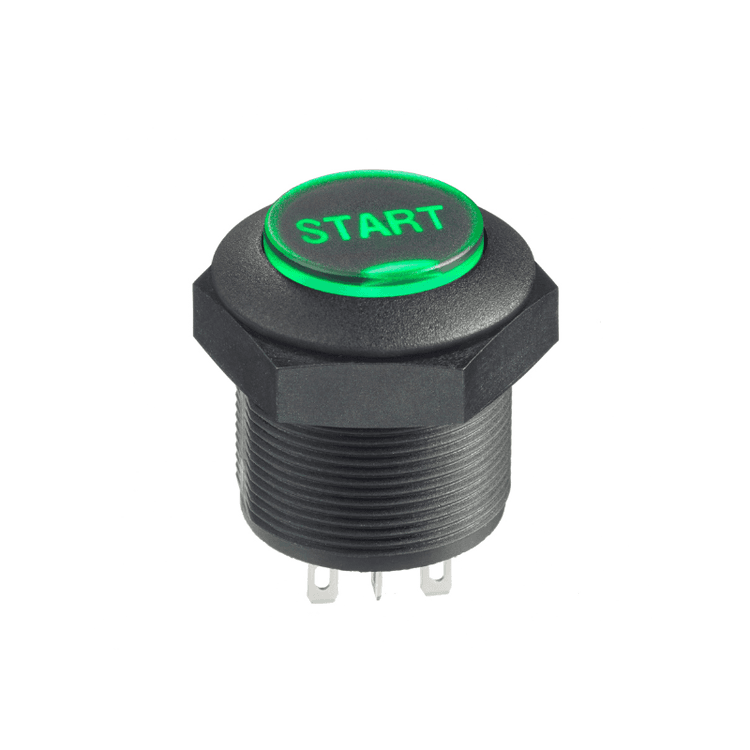

FD series, double icon illuminated pushbutton switches, the combination of attractive design & robustness.

With two different legends on a single switch, the FD series is ideally suited for integrated designs where additional switches or indicators are no longer necessary.

Designed like a traditional pushbutton, the FD series integrates a technology of superposed filters reacting to green and red light only. This technology allows the display of two different legends depending on the illumination color.

Main features

  • Quality of screen printed legends
  • Uniform luminosity without hot spot
  • Large size, snap-in and threaded bushing versions
  • Sealing up to IP69K
  • Resistance to shocks and vibrations
  • Three standard legends are available. Additional legends can be achieved on request
Product detail

Key Features

• Panel thickness :
- Snap-in version :
1.5 (.059) to 2 mm (.078) with panel gasket
2 (.078) to 2.5 mm (.885) without panel gasket
- Threaded bushing version :1(.039) to 18 mm (.708) max.
• Total travel : 2.5 mm ± 0.5 mm
• Typical operating force : 8 N ± 2 N
• Low level or mechanical life :
- Momentary models : 1 million cycles
- Latching models : 200,000 cycles
• Torque : 3 Nm max. applied to nut
334 筆 Products
Filters
  1. FDAP3D1282F2G - FD
    FD
    FDAP3D1282F2G
  2. FDAP3D1282F2F - FD
    FD
    FDAP3D1282F2F
  3. FDAP3D1282F2E - FD
    FD
    FDAP3D1282F2E
  4. FDAP1F1482F2F - FD
    FD
    FDAP1F1482F2F
  5. FDAP1F1482F2E - FD
    FD
    FDAP1F1482F2E
  6. FDAP1D1282F2F - FD
    FD
    FDAP1D1282F2F
  7. FDBP3C1282F2F - FD
    FD
    FDBP3C1282F2F
  8. FDBP1F1482F1F - FD
    FD
    FDBP1F1482F1F
  9. FDAP3D1482F1G - FD
    FD
    FDAP3D1482F1G
  10. FDAP3D1482F1F - FD
    FD
    FDAP3D1482F1F
  11. FDAP3D1482F1E - FD
    FD
    FDAP3D1482F1E
  12. FDAP3D1282F1G - FD
    FD
    FDAP3D1282F1G

Showing 1~ 12 of 334 Products

...
