600H-600NH

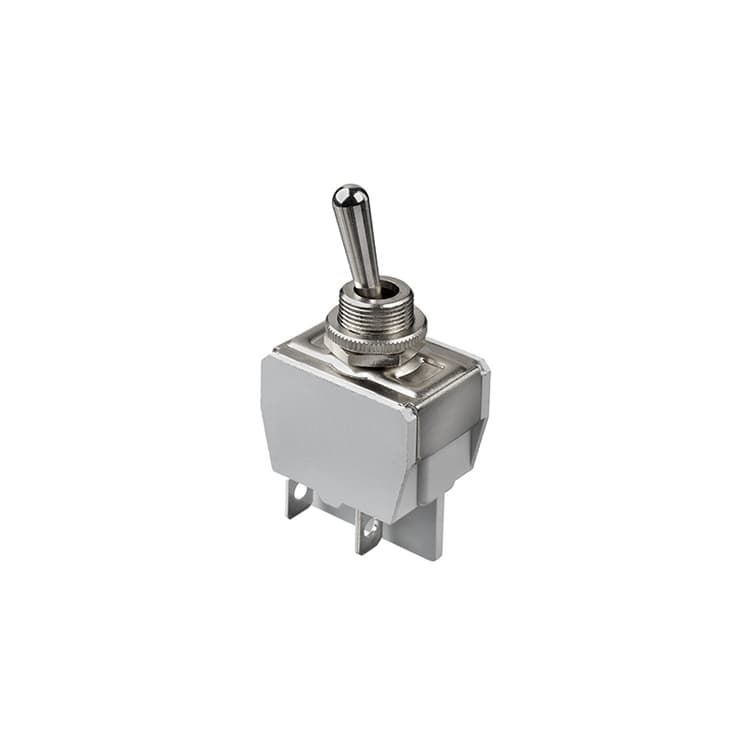

Industrial toggle switches with high amperage and metal or insulated lever. The 600 series are manufactured from a single piece of metal, increasing the mechanical strength.
Main features
- Construction: Terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength.
- Rating: These switches are suitable for motor loads and power applications up to 15 A 250 VAC or 10 A 400 VAC
- Metal or insulated lever
- UL, CSA and NF-VDE (EN 61058-1) approved
Key Features
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 4.5 mm (.177) max. between 2 nuts
• Panel thickness: 4.5 mm (.177) max. between 2 nuts
568 筆 Products
Filters
568 筆 Products
Sort By
600H-600NH659NH/2
600H-600NH659NH
600H-600NH659HTKLUXE- 600H-600NH659HTK
- 600H-600NH659HT
- 600H-600NH659HK
600H-600NH659H/2TKLUXE- 600H-600NH659H/2TK
- 600H-600NH659H/2T
- 600H-600NH659H/2K
- 600H-600NH659H/2
- 600H-600NH659H
Showing 1~ 12 of 568 Products
...
