3000

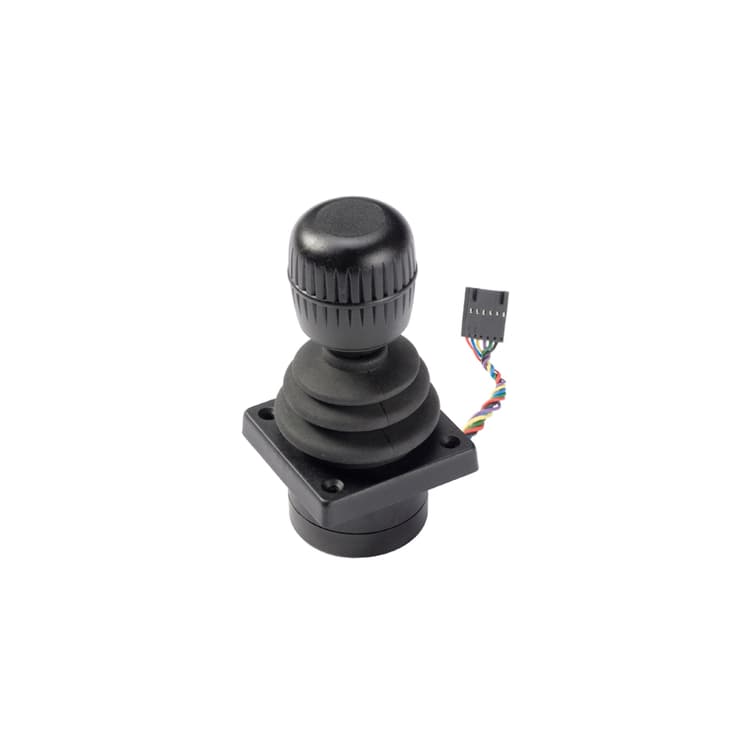

The 3000 Series is the very latest generation in high precision contactless joysticks. With a class leading installed depth of <20mm, it is available in 1,2, or 3 axis formats. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analog signals or custom PWM output options. The 3000 Series also delivers a radically improved mechanism construction that is specifically designed for increased robustness, strength and performance.

Main features

• Class leading installed depth <20mm
• Hall effect sensing
• 1,2, or 3 axis
• 5V or 3.3V operation
• EMC Shielded
• Analog PWM CAN J1939 & CANopen outputs
• Analog or PWM outputs
• Next generation metal mechanisms
• Dual outputs available
