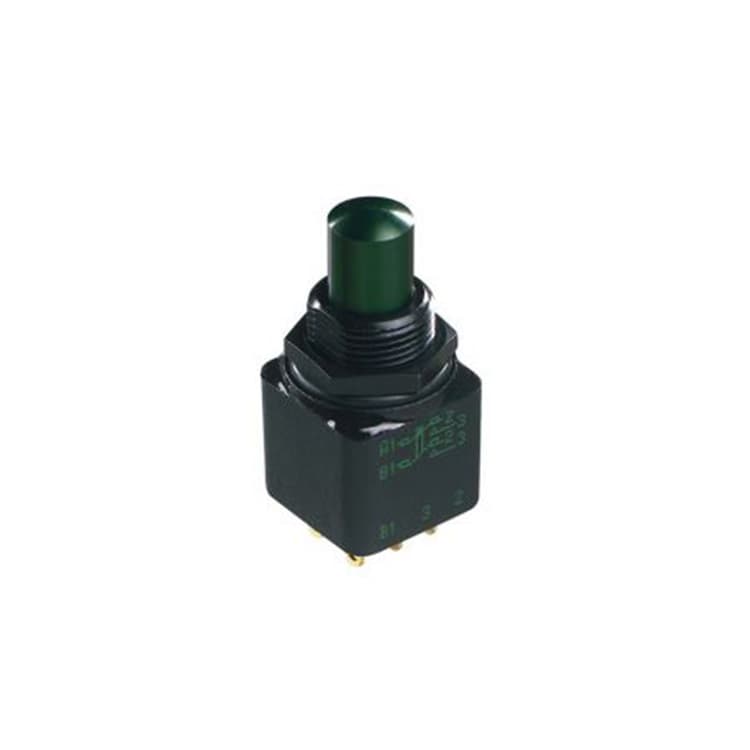

13000X778 - momentary

Double pole double throw momentary pushbuttons with highly reliable contacts suitable for low level applications. Their double shell case construction provides extra mechanical strength.

Main features

• Approval CECC 96401-001 : This range of professional pushbutton switches is suitable for use in military and other high specification environments.
• Highly reliable contacts suitable for low level applications (10mA 50mV - 10μA 5VDC min.) or power applications (2A 250VAC - 4A 125VAC - 4A 30VDC max.)
• Double shell case for high mechanical strength and high electrical insulation.
• Compact size : The small rear end of the switch allows space saving behind the panel.
• Matt black finish on body, bushing, lever and hardware.
• Panel sealed to IP67, these switches are frontal sealed by two O-rings and have full rear end sealing.
• Solder lug or pc terminals
