3500

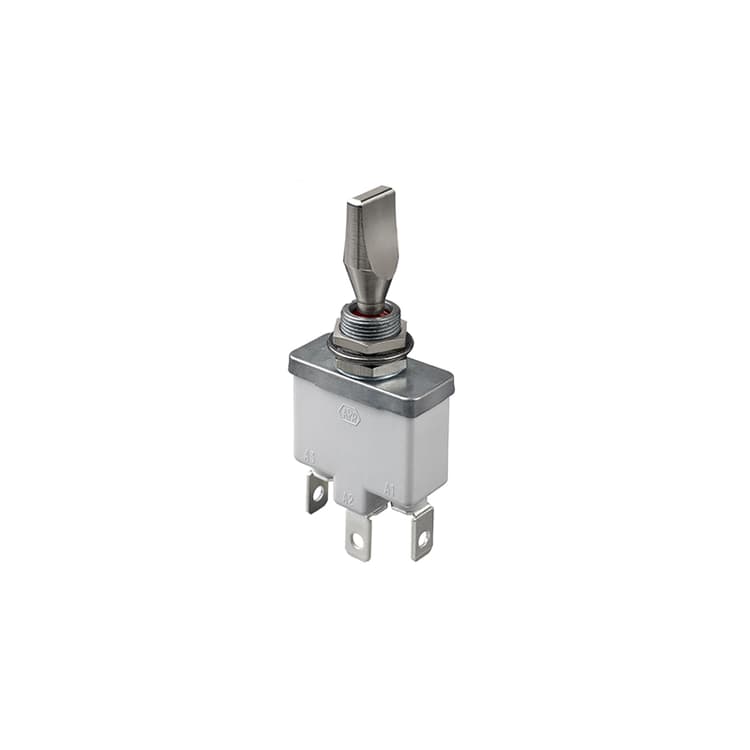

1 and 2 pole configurations available with solder lug, screw or quick connect terminals. Toggle switches designed for outdoor applications. Frontal sealing to IP67 and IP69K by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.
Main features
- Completely sealed switches withstanding 0.1 bar pressure
- Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting, add washer U60)
- Rear sealing to IP64 provided by moulded-in terminal inserts
- Approved to European standards CECC 96000
- 3 types of terminals
- Many lever styles available
Key Features
• Mechanical life: 40,000 cycles
• Torque: 2 Nm (1.47 Ft.lb) max. applied to nut
• Torque: 2 Nm (1.47 Ft.lb) max. applied to nut
309 筆 Products
Filters
309 筆 Products
Sort By
35003549-033N002- 35003549-031N000
- 35003549-024N002
- 35003549-023N000
- 35003549-021N002
- 35003549-021N000
- 35003549-021BA02
- 35003549-006NA00
- 35003549-004N002
- 35003549-003N012
- 35003549-003N000
- 35003549-003B002
Showing 1~ 12 of 309 Products
...
